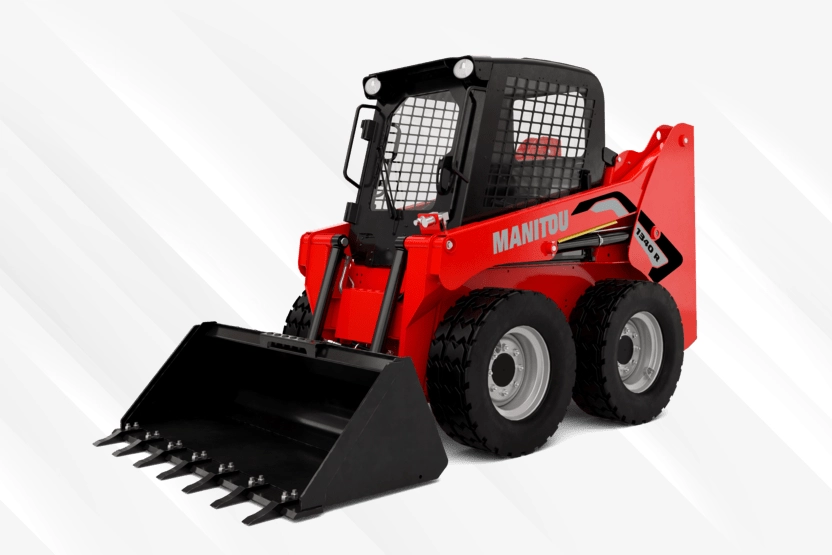

R SKID STEER LOADER
1340

R SKID STEER LOADER

Features

  • Designed For Performance: Offers enhanced performance in loading, grading and digging below grade applications. Due to the radial lift path, the maximum reach is greater at the middle of the lift height.
  • Rated operating capacity : Standard: 612 kg | Overall height 1826 mm | Lifting height 2794 mm |Operating capacity 612 kg.
  • Comfort & Operator safety Visibility : Wide opening in the front of the machine and large screen windows provide high visibility for increased safety and precise load placement.
  • Operator Presence:  The machine safety system allows operation only when the user is on the seat and the restraint bar is lowered into position.
  • Easy entry and exit  : Large entry area allows for easy access to the operator station.
  • Hydraloc : Automatic interlock system locks lift, tilt & drive systems when the operator leaves the seat, increasing operator safety.

Technical Specifications

Capacities
Metric
Rated Operating Capacity
-
612 kg
Operating Weight - Approximate
-
2200 kg
Tipping capacity
-
1224 kg
Weight and dimensions
Metric
Overall Operating Height - Fully Raised mm (in)
A
3584 (141.1)
Height to Hinge Pin - Fully Raised mm (in)
b
2794 (110)
Overall Height to Top of Rops mm (in)
c
1826 (71.8)
Dump angle at full height
d
42°
Dump height mm (in)
e
2197 (86.4)
Overall length with bucket mm (in)
f
2952 (116.2)
Dump reach at full height mm (in)
g
528 (20.7)
Rollback at ground
h
29°
Rollback Angle at full Height
i
99°
Seat to ground height mm (in)
j
853 (33.6)
Wheelbase mm (in)
k
923 (36.3)
Overall width less bucket mm (in)
l
1346 (53)
Bucket Width mm (in)
m
1562 (61.5)
Ground clearance mm (in)
n
211 (8.3)
Overall length - Less Bucket mm (in)
o
2314 (91.1)
Departure angle
p
29°
Clearance Radius - Front with Bucket mm (in)
q
1758 (69.2)
Clearance Circle Front - without Bucket mm (in)
r
1102 (43.4)
Clearance Circle - Rear mm (in)
s
1484 (58.4)
Performances Metric
Metric
Travel speed (unladen)
-
10.70 km/h
Wheels
Metric
Standard tyres
10X 16.5-10 PR Heavy Duty
Transmission type
Fully hydrostatic
Number of drive wheels
4
Engine
Metric
Engine brand
Yanmar
Engine model
4TNV88
Engine norm
BS-III
Gross Power (HP)
49 HP
Max. torque / Engine rotation
142 Nm/1600 rpm
Battery
12 V
Starter (kw)
3 kW
Hydraulics
Metric
Auxiliary Hydraulic Pressure
190 bar
Hydraulic Flow
62 LPM
Tank capacities
Metric
Fuel tank
47 l
Displacement
2.20 l
Reservoir Capacity Hydraulics
30.30 l
Coolant system capacity
7.60 l
LH Chain case
8.25 l
RH Chain case
8.25 l
Standard Fitment
Front Door
Backup Alarm
Options Available
Solid Flex tyres
Easy Manager
