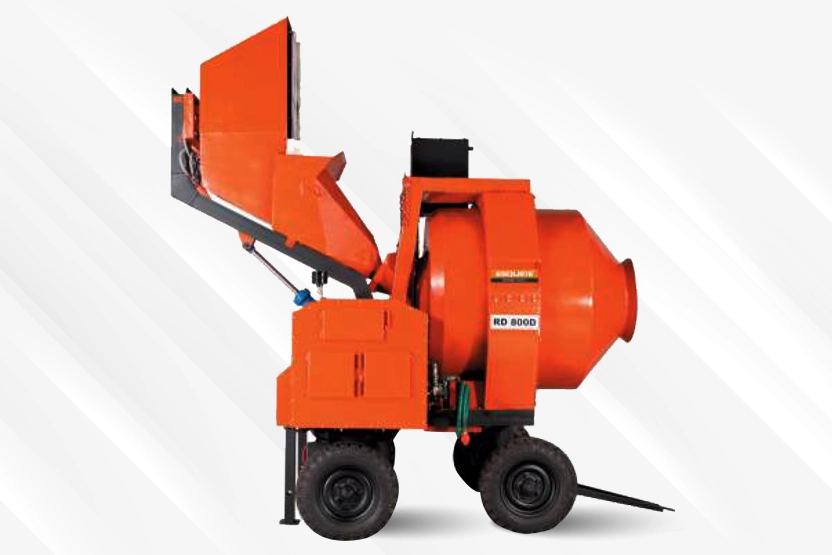

erd 600/800/1050 d/e
Reversible drump
(concrete mixer)
Features
- Sturdy & robust.
- Positive hydraulic transmission with built in reliability.
- Joy stick type hydraulic control operation.
- Four jack for better stability during operation.
- Easy transportation with pneumatic wheel.
- Calibrated water tank.
- Hydraulically or Electrically operated water pump.
- Electronic weighing system with digital display.
- Positive drive for the drum - increased efficiency.
- Prime mover : Electric motor or Diesel engine.
Technical data
ERD 600 D/E
ERD 800 D/E
EMRD 800 E
ERD 1050 E
Capacity (Unmixed)
600 Ltrs
800 Ltrs
800 Ltrs
1050 Ltrs
Capacity (Mixed)
400 Ltrs
600 Ltrs
600 Ltrs
800 Ltrs
Power (Diesel Engine)
12.0 HP
16 HP
-
-
Power (Electric Motor)
12.5 HP
15 HP
12.5 HP
20 HP
No. of Bins
1,2,3 or 4
1,2,3 or 4
1,2,3
1,3
Water Tank
120 Ltrs
120 Ltrs
120 Ltrs
270 Ltrs
Drum Speed
12-13 RPM
12-13 RPM
12 RPM
12 RPM
Discharge Height
1440 mm
1440 mm
1650 mm
1650 mm
Production Rate*
8-10 CuM/Hr
12 cum/Hr
12 CuM/Hr
16 Cum/Hr
Optional
- Duals Drives: Electric motor & Diesel engine onthe same chassis.
- Vibrator on hopper.
- Digital monitor with USB port & printing facility
- Programmable water dispenser system.
- SCADA system.
- Stainless steel drum.

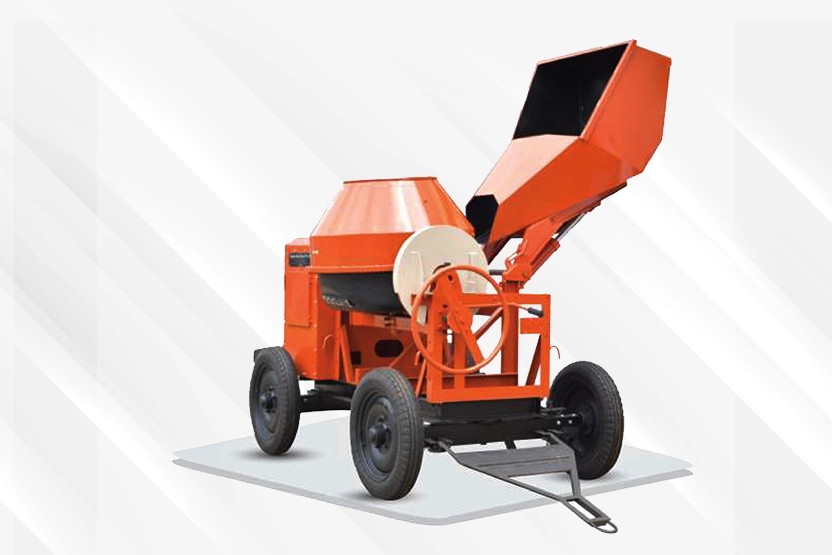

ehy 300/350 d/e
hydraulic hopper
(concrete mixer)
Features
- Rugged & reliable design principles.
- Built in reliability.
- Hydraulic pump directly mounted on prime mover.
- Jacks for stability during operations.
- Easy to transport.
- Pneumatic / MS wheels with towing bar.
- Prime mover : Electric motor or Diesel engine.
Technical data
EHY 300/350 D/E
Drum Capacity
480 Ltrs
Capacity (Unmixed)
300/250 Ltrs
Capacity (Mixed)
200/250 Ltrs
Water Volume
480 Ltrs
Power (Diesel Engine)
6 HP
Power (Electric Motor)
5 HP
Drum Base
Cast Iron/MS
No. of Bins
1 or 2
Production Rate*
6 - 8 CuM/Hr
Weight (Approx.)
1300 Kgs
Optional
- Duals Drives: Electric motor & Diesel engine on the same chassis.
- Easy interchangeability of power source.
- Digital Weighing System: With/without print facility monitor & USB port.
- Calibrated water tank – 40 ltrs. with water dispenser system.
- Towing speed 15 km/hr.
